Modem Transceiver for Cirronet WIT2410, WIT910

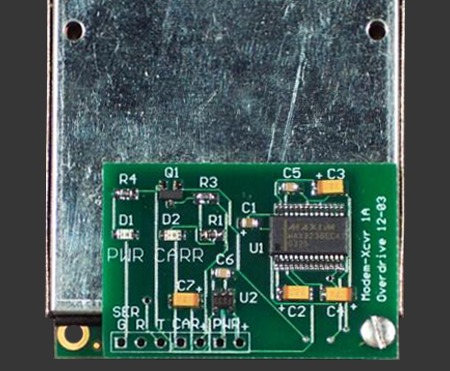

The MDMX-2410A transceiver implements a three-wire RS232 interface to the Cirronet WIT2410 and WIT910 radio modems.
It is a connectored mezzanine which mates with the "pins down" version of the modem.
The design has been tested extensively at speeds up to 230400 bps.
Provides power to the modem itself as well as the onboard transceiver.
Implements power and carrier LEDs, and pads for external carrier LED.
Comes with standoff hardware.

* New Design now available *

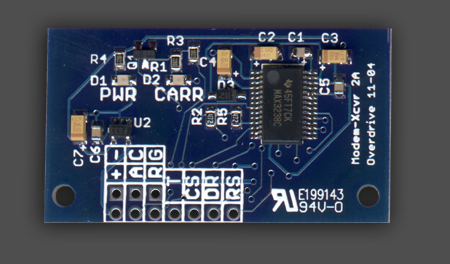

The MDMX-2A is a 7-wire serial transceiver, with two mounting holes.
(Bare PCB shown above).


Specifications

Part Number, 3 wire:MDMX-2410A
Part Number, 7 wire:MDMX-2A
Mates with:Cirronet part number WIT2410M4, WIT910
Signal levels: RS232
Power input: 4-10VDC
External carrier LED: no resistor required
Dimensions: 1.5"x1.0" (38.1x25.4mm)
Cable Option: USB power cable and DB9 RS232 cables attached.
 Hardware handshaking implemented in RS232 connector.
Pricing :
MDMX-2410A$110 USD
MDMX-2A$135 USD
Cable Option$25 USD

Net 30 and COD terms available.

Documentation

Wireless Howto (pdf)
